Detection Indicator:

PWV (pulse wave velocity): 5 to 20 (m/s), which is a commonly used clinical indicator to evaluate arterial stiffness.

ABI (ankle-brachial index): 0 to 5, is an important clinical indicator for judging arterial obstruction in the lower limbs

STI (systolic time interval): Use ET, PEP, etc. (usually collectively referred to as STI) to evaluate myocardial energy

Systolic blood pressure of limbs (SBP), diastolic blood pressure of limbs (DBP), mean pressure of limbs (MAP), pulse pressure (PP)

TBI (toe-brachial index), BAI (brachial-ankle index), ECG (electrocardiogram waveform), PCG (heart sound waveform)

SV (cardiac output per stroke), CO (cardiac output), SVR (peripheral resistance), ASI (arteriosclerosis index), C1 (large artery compliance index), C2 (small artery compliance index)

※Product specifications and functions are subject to upgrade or change without prior notice.

Product advantages

Easy to understand: A4 color printed measurement report fully presents various measurement data and gives normal standard values ​​as a reference.

Quick operation: rapid measurement, can detect 4 arterial pulse waves at the same time (left upper arm artery, right upper arm artery, left ankle artery, right ankle artery)

Diverse expansion: A complete database system that enables data storage, historical data tracking of patient case data, and data backup, and can be connected to health management software systems.

System maintenance function: Users can perform air tightness testing on their own.

Humanized design: 270-degree rotating color LCD display for convenient measurement operations.

Use a special cuff for pulse sensor to accurately measure, adopt PWV method, oscillometric method, and parameter analysis method

Fully automatic synchronous or asynchronous measurement of limbs, PWV, ABI, ASI and other arteriosclerosis parameters comprehensively reflect the degree of arteriosclerosis.

Humanized user interface instructions.

Easy to operate, non-invasive detection, improve operating efficiency.

Functional performance

Detection principle: oscillometric method, parameter analysis method, elastic cavity theory method

Comprehensive diagnosis: Five arteriosclerosis parameters including PWV, ABI, ASI, C1, and C2 comprehensively reflect the degree of arteriosclerosis.

Pressurization and deflation method: The air pump automatically pressurizes, decompresses and exhausts automatically, and automatically and safely deflates after power failure;

System automatic maintenance function: users can perform air tightness testing on their own;

Special cuffs for arteriosclerosis detection: Four special cuffs perform signal collection and detection on all four limbs simultaneously;

Detection speed: ECG signal 25mm/second, heart sound signal 25mm/second, pulse signal 25mm/second. The accuracy error is no more than 10%.

Networking function: It can save report form pictures, save doctor's opinions, save examination findings, save examination parameters, and can connect to the information network platform of medical institutions to share data and information.

Diverse expansion: A complete database system can realize data storage, historical data tracking of patient case information, data backup, and can be connected to the hospital management system.

Display part: ≥15.6-inch color high-resolution and bright LCD touch display, convenient for measurement operations.

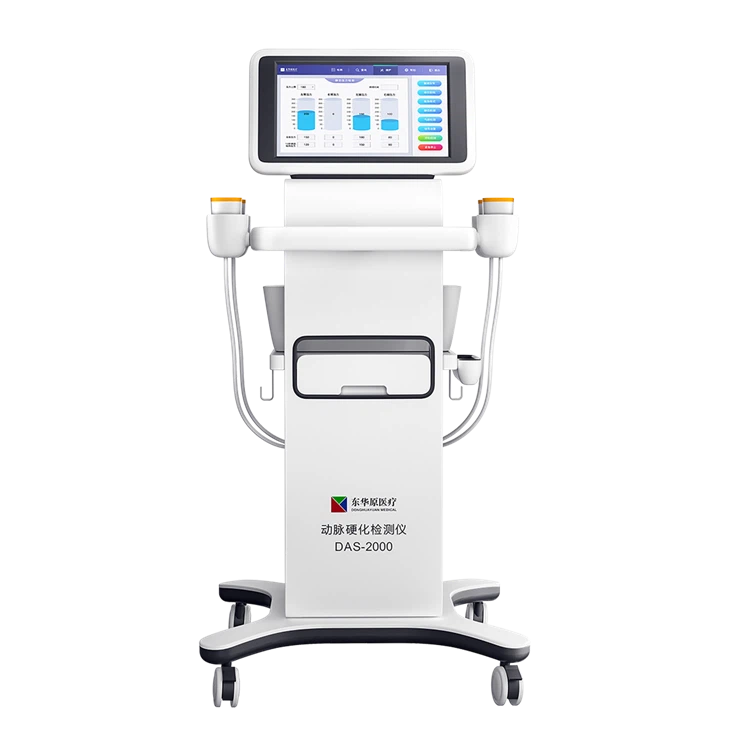

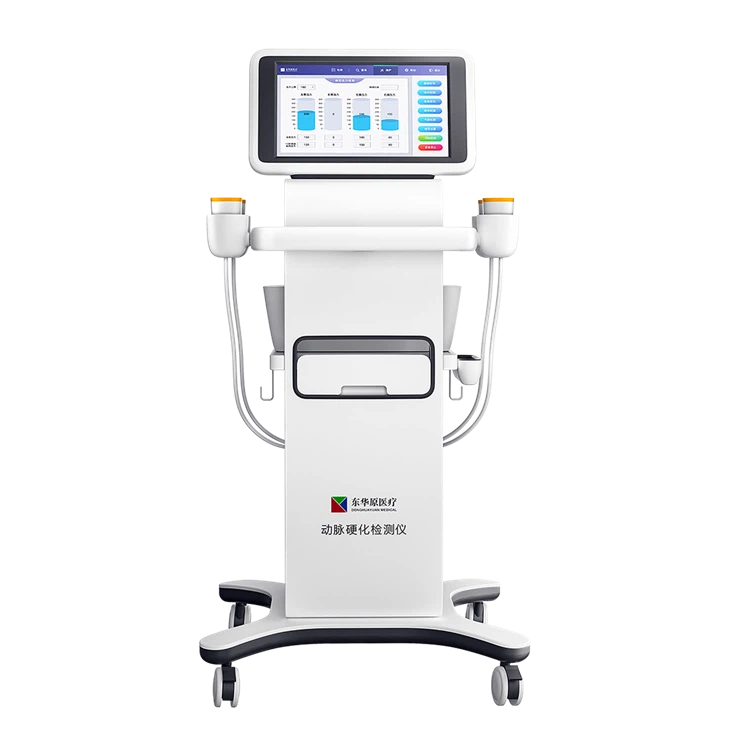

Trolley part: The overall equipment is of trolley type, which occupies a small area and has moving rollers for easy transportation.
